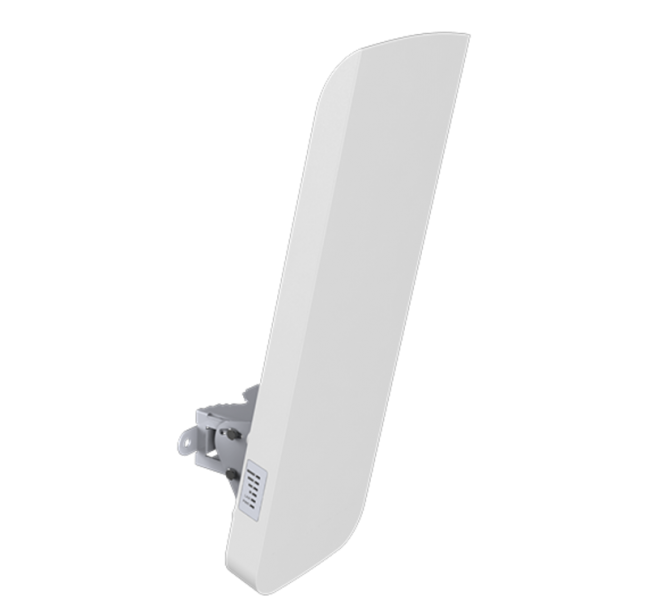

LigoDLB 5-90 Outdoor Wireless Device
500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory, the LigoDLB ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over highest the modulation—256-QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
Tags：5GHz
86+17722547662
Contact Us
- 86+17722547662
- fanchao
- 17722547662@163.com
Highlights:
5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
80,000 PPS
170 Mbps capacity
High output power 29 dBm radio
Integrated 18 dBi dual-polarized 90 degree sector antenna
Powerful OS
Smart polling data transmission protocol (iPoll 3)
Meets IP – 65 certification
Free NMS (Infinity Controller)
Responsive HTML 5 based GUI
Wall and pole mounting option
Specifications
| Product/ distance recomendation | PTMP mode | PTP mode | PTP mode (full capacity) |
| DLB 5-90 | 7 km/ 4.35 mi | N/A | N/A |
Wireless
| WLAN standard | IEEE 802.11 a/n, iPoll (proprietary) |
| Radio mode | MIMO 2×2 |
| Radio frequency band | 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz) |
| Transmit power | Up to 29 dBm (country dependent) |
| Receive sensitivity | Varying between -97 and -75 dBm depending on modulation |
| Channel size | 5,10, 20, 40 MHz |
| Modulation schemes Data rates | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Error correction | FEC, Selective ARQ |
| Duplexing scheme | Time division duplex |
Antenna
| Type | Integrated directional panel antenna |
| Gain | 18 dBi |
Wired
| Interface | 10/100 Base-T, RJ45 |
Software
| Wireless operating modes | Access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT) |
| Wireless techniques | Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) |
| Wireless security | WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation |
| Wireless QoS | 4 queues prioritization on iPoll 2 |
| Network operating modes | Bridge, router iPv4, router IPv6 |
| Network techniques | Routing with and without NAT, VLAN |
| WAN protocols | Static IP, DHCP client, PPPoE client |
| Services | DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog |
| Management | HTTP(S) GUI, SSH, SNMP read, Infinity Controller, Telnet |
| Tools | Site survey, link test, antenna alignment |
Physical
| Dimensions | Length 430 mm (16.9 ‘’), width 150 mm (5.9 ‘’), height 40 mm (1.6 ‘’) |
| Weight | 1000 g (2.2 lb) |
| Mounting | Combination wall / pole mount included |
Power
| Power supply | 12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package) |
| Power source | 100 – 240 VAC |
| Power consumption (max) | 4.5 W |
Environmental
| Operating temperature | -40°C (-40 F) ~ +65°C (+149 F) |
| Humidity | 0 ~ 90 % (non-condensing) |
Management
| System monitoring | SNMP v1 server, Syslogs, system alerts via e-mail and SNMP trap |
Regulatory
| Certification | FCC/IC/CE |
