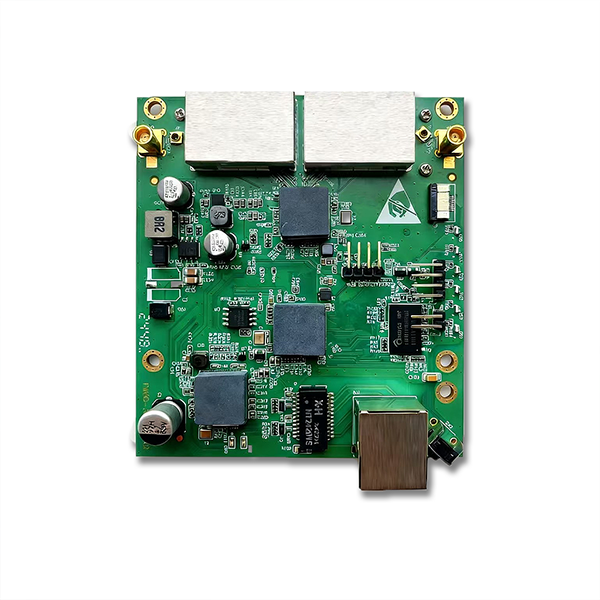

11ax 5.9–7.1 GHz PTP/PTMP 1.5 Gbps High-Bandwidth 160 MHz Channel Wi‑Fi 6 High-Performance Wireless Bridge Mainboard PCBA

Product Overview

The 11ax series leverages IEEE 802.11ax technology to deliver high-performance point-to-point (PTP) and point-to-multipoint (PTMP) wireless connectivity. It supports up to 1.5 Gbps throughput, 1024‑QAM modulation, and up to 26 dBm transmit power, enabling high-speed, stable long-distance links. Built on a dual-core processor and equipped with a 2.5 Gbps Ethernet port with 160 MHz wide-channel support, it provides exceptional packet processing and forwarding performance—ideal for real-time transmission applications.

Key Advantages

• Ultra-high performance: up to 1500 Mbps throughput with 160 MHz channel bandwidth
• Operating band: 5.1–5.8 GHz
• Dual Ethernet ports: the Gigabit port supports software-controlled PoE output to power external devices

Technical Specifications

Software Features

• Supports Bridge, IPv4 routing, and IPv6 routing modes
• Static/Dynamic IP configuration with built-in DHCP server; supports NAT, static routes, port forwarding, and DMZ
• Up to 8 SSIDs per radio; supports data and management VLANs (802.1Q) and Q-in-Q
• Site survey, Ping/Traceroute, spectrum analysis, and L3/L4 packet analysis
• Wireless security: WPA/WPA2/WPA3 Personal/Enterprise, WACL, and client isolation
• Management tools: Web UI, Infinity controller, SNMP v1/v2c/v3, and system logs
